General Information:

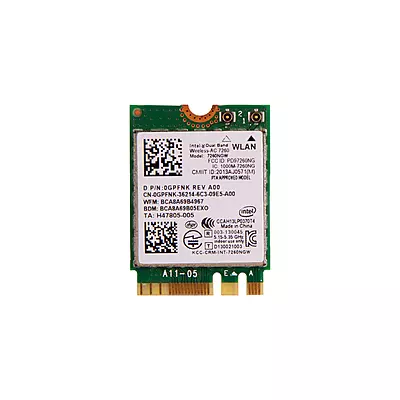

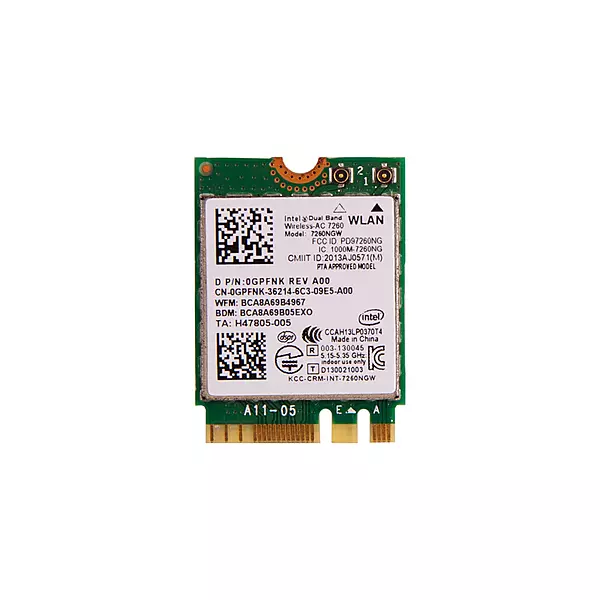

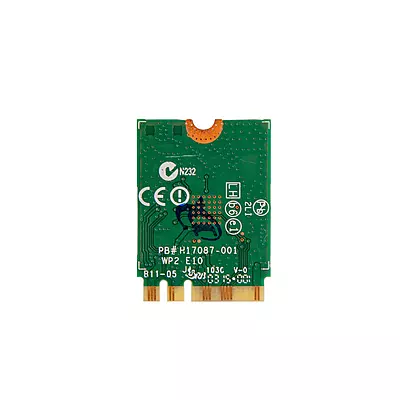

• Model: Intel Dual Band Wireless-AC 7260NGW
• Form Factor: M.2 2230 (NGFF)
• Interface: PCIe (Wi-Fi) / USB (Bluetooth)
• Chipset: Intel 7260 series

Wi-Fi Specifications:

• Standards: IEEE 802.11a/b/g/n/ac
• Frequencies: 2.4 GHz & 5 GHz
• Max Speed:
  • 867 Mbps (5 GHz, 802.11ac, 2x2 MIMO)
  • 300 Mbps (2.4 GHz, 802.11n, 2x2 MIMO)
• Security: WPA/WPA2, WEP 64/128-bit, 802.1X, AES-CCMP, TKIP
• Antenna: Requires external antennas (not included)

Bluetooth Specifications:

• Version: Bluetooth 4.0 / 4.2
• Profiles: HSP, HFP, A2DP, AVRCP, OPP, FTP, PAN, HID

Other Features:

• Intel Wireless Display (WiDi) Support
• Low power consumption
• OS Compatibility: Windows 7, 8, 8.1, 10
